U-SHAPED STEEL

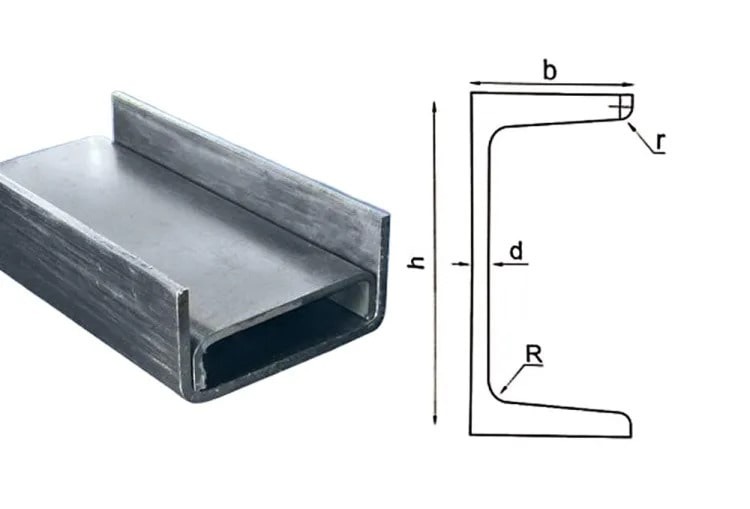

U-SHAPED STEEL is a structural steel with cross-sectional characteristics resembling a C or U shape, with a straight back called the body and two extensions called the upper and lower wings.
Advantages
Enduring with time
High quality
Bearing good
Cost saving
Eco-friendly materials
Policy
Construction warranty
Precision machining
Safe transport
Share

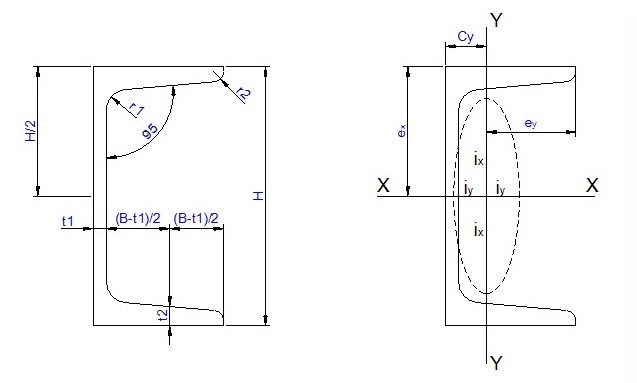

Section
Specifications

Name Specifications Lenght Mass Kg/Mét Mass Kg/Cây
U49 U 49x24x2.5x6m 6M              2.33               14.00
U50 U50x22x2,5x3x6m 6M                 13.50
U63 U63x6m 6M                 17.00
U64 U 64.3x30x3.0x6m 6M              2.83               16.98
U65 U65x32x2,8x3x6m 6M                 18.00
U65x30x4x4x6m 6M                 22.00
U65x34x3,3x3,3x6m 6M                 21.00
U75 U75x40x3.8x6m 6M              5.30               31.80
U80 U80x38x2,5x3,8x6m 6M                 23.00
U80x38x2,7x3,5x6m 6M                 24.00
U80x38x5,7 x5,5x6m 6M                 38.00
U80x38x5,7x6m 6M                 40.00
U80x40x4.2x6m  6M              5.08               30.48
U80x42x4,7x4,5x6m 6M                 31.00
U80x45x6x6m 6M              7.00               42.00
U 80x38x3.0x6m 6M              3.58               21.48
U 80x40x4.0x6m 6M              6.00               36.00
 U100 U 100x42x3.3x6m  6M              5.17               31.02
U100x45x3.8x6m 6M              7.17               43.02
U100x45x4,8x5x6m 6M                 43.00
U100x43x3x4,5x6 6M                 33.00
U100x45x5x6m  6M                 46.00
U100x46x5,5x6m 6M                 47.00
U100x50x5,8x6,8x6m 6M                 56.00
U 100x42.5x3.3x6m 6M              5.16               30.96
U100 x42x3x6m 6M                 33.00
U100 x42x4,5x6m 6M                 42.00
U 100x50x3.8x6m 6M              7.30               43.80
U 100x50x3.8x6m 6M              7.50               45.00
U 100x50x5x12m 12M              9.36             112.32
 U120 U120x48x3,5x4,7x6m 6M                 43.00
U120x50x5,2x5,7x6m 6M                 56.00
U 120x50x4x6m 6M              6.92               41.52
U 120x50x5x6m 6M              9.30               55.80
U 120x50x5x6m 6M              8.80               52.80
 U125 U 125x65x6x12m 12M            13.40             160.80
 U140 U140x56x3,5x6m 6M                 54.00
U140x58x5x6,5x6m 6M                 66.00
U 140x52x4.5x6m 6M              9.50               57.00
U 140x5.8x6x12m 12M            12.43               74.58
 U150 U 150x75x6.5x12m 12M            18.60             223.20
U 150x75x6.5x12m(đủ) 12M            18.60             223.20
 U160 U160x62x4,5x7,2x6m 6M                 75.00
U160x64x5,5x7,5x6m 6M                 84.00
U160x62x6x7x12m  12M            14.00             168.00
U 160x56x5.2x12m 12M            12.50             150.00
U160x58x5.5x12m 12M            13.80               82.80
 U180 U 180x64x6.x12m 12M            15.00             180.00
U180x68x7x12m 12M            17.50             210.00
U180x71x6,2x7,3x12m  12M            17.00             204.00
 U200 U 200x69x5.4x12m 12M            17.00             204.00
U 200x71x6.5x12m 12M            18.80             225.60
U 200x75x8.5x12m 12M            23.50             282.00
U 200x75x9x12m 12M            24.60             295.20
U 200x76x5.2x12m 12M            18.40             220.80
U 200x80x7,5x11.0x12m 12M            24.60             295.20
 U250 U 250x76x6x12m 12M            22.80             273.60
U 250x78x7x12m 12M            23.50             282.00
U 250x78x7x12m 12M            24.60             295.20
 U300 U 300x82x7x12m 12M            31.02             372.24
U 300x82x7.5x12m 12M            31.40             376.80
U 300x85x7.5x12m 12M            34.40             412.80
U 300x87x9.5x12m 12M            39.17             470.04
 U400 U 400x100x10.5x12m 12M            58.93             707.16
Cừ 400x100x10,5x12m 12M            48.00             576.00
Cừ 400x125x13x12m 12M            60.00             720.00
Cừ 400x175x15,5x12m 12M            76.10             913.20





Other products
H BEAM
H Beam is a type of steel with an H-shaped structure, with the characteristics of high balance, so the ability to withstand pressure perfectly. The use of H beam is often used to make house construction structures, beams, roof or column frames, machinery,
V-SHAPED STEEL
V-SHAPED STEEL, also known as angle steel with a V-shaped cross-section. Steel is divided into 2 main types: normal angle steel and hot-dip galvanized angle steel.
I BEAM
I Beam is a type of steel shaped like the capital letter I in the alphabet. The structure of this steel consists of 2 parts, the horizontal part (wing part) and the belly connection part (connecting the 2 wings). In which, the wings are short and of equal
